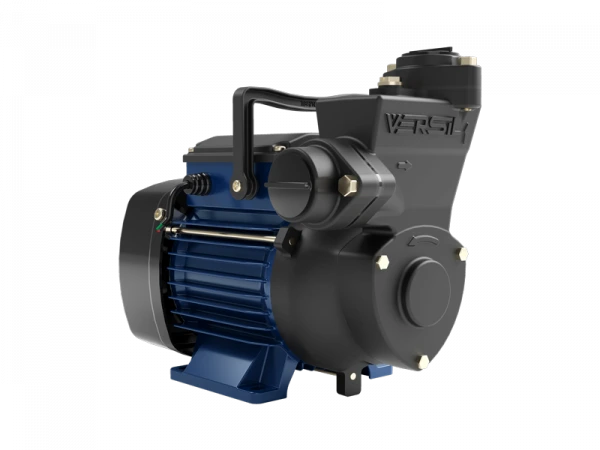

Hippo Series
Designed For More Pressure
More Pressure
In irrigation Use
Strong Build Quality
Noise Free Operations
Long Life
Maintenance Free
| Features |
Fast filling of overhead tank in houses/buildings upto 6 floors. |
High grade enameled copper motor windings for high operating efficiency. |
Double shielded pre-lubricated ball bearing for smooth operation. |
The rotating parts of motor and pump are dynamically balanced to ensure minimum noise and vibration. |
Protective Enclosure – Totally Enclosed Fan Cooled motor (TEFC). |
Pump can operate in wide voltage range. |
| Specification | |
| kW | 0.37 kW / 0.75 kW |
| HP | 0.50 HP / 1.00 HP |
| Head Range | 6 – 45 Meter |
| Discharge Range | 3240 – 550 LPH |
| Rated Speed | 2900 RPM |
| Voltage Range | 180 V – 240 V, 50Hz, Single Phase, AC |
| Material Of Contruction | |
| Motor Body | Aluminum Pressure Die Cast |
| Winding Material | Pure Copper |
| Pump Body | Cast Iron FG200 |
| Impeller | Forged Brass |
| Shaft | Stainless Steel 410 |
| Mechanical Seal | Carbon / Ceramic |
